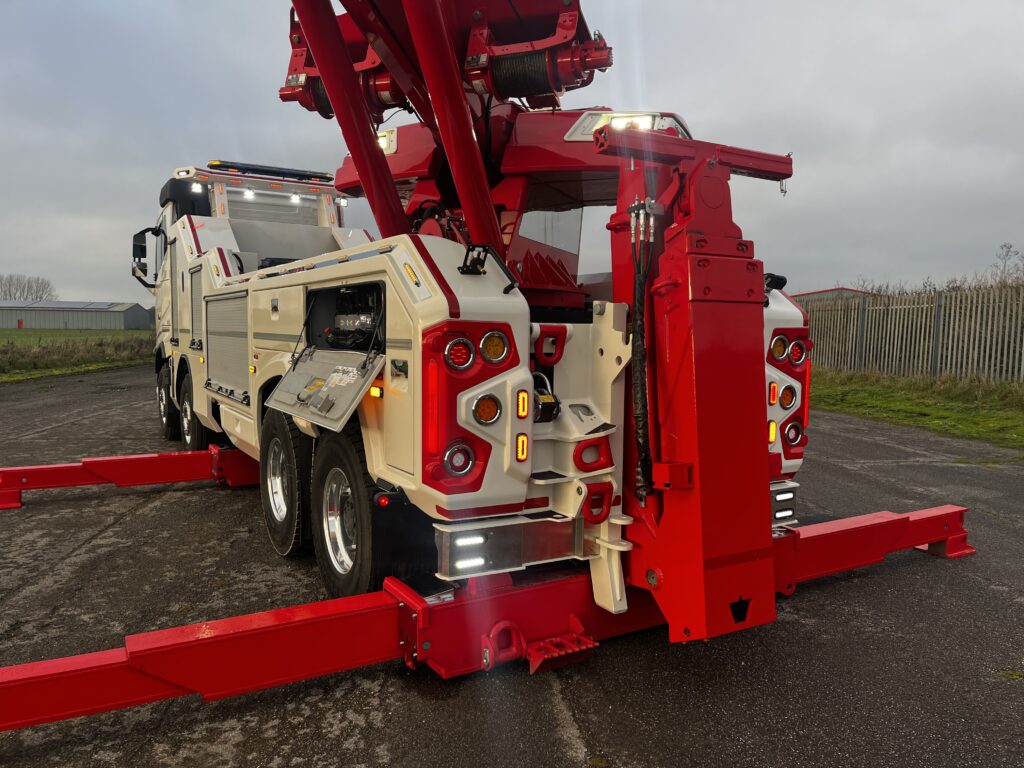

Volvo FH16 / NRC CSR65
8×4
FH 780
12 speed auto gearbox
Rear air suspension
Front axles 20ton (2 x 10t)
Rear bogie 26t (2 x 13t)
Full flinched chassis rails
Twin fuel tanks
Aalco Durabright ally rims
Gearbox mounted retarder
Sleeper cab
Night heater
33ltr fridge
Electric interior sun blind
FH16 leather trim
Electric cab tilt
Auto headlights
LED rear lighting
NRC CSR65
Max Lift Capacity: 65 Tons
Working hydraulic pressure: 3500 PSI
Composite body 102” wide (including fenders)
245” CLA (from cab to centre of rearmost axle)

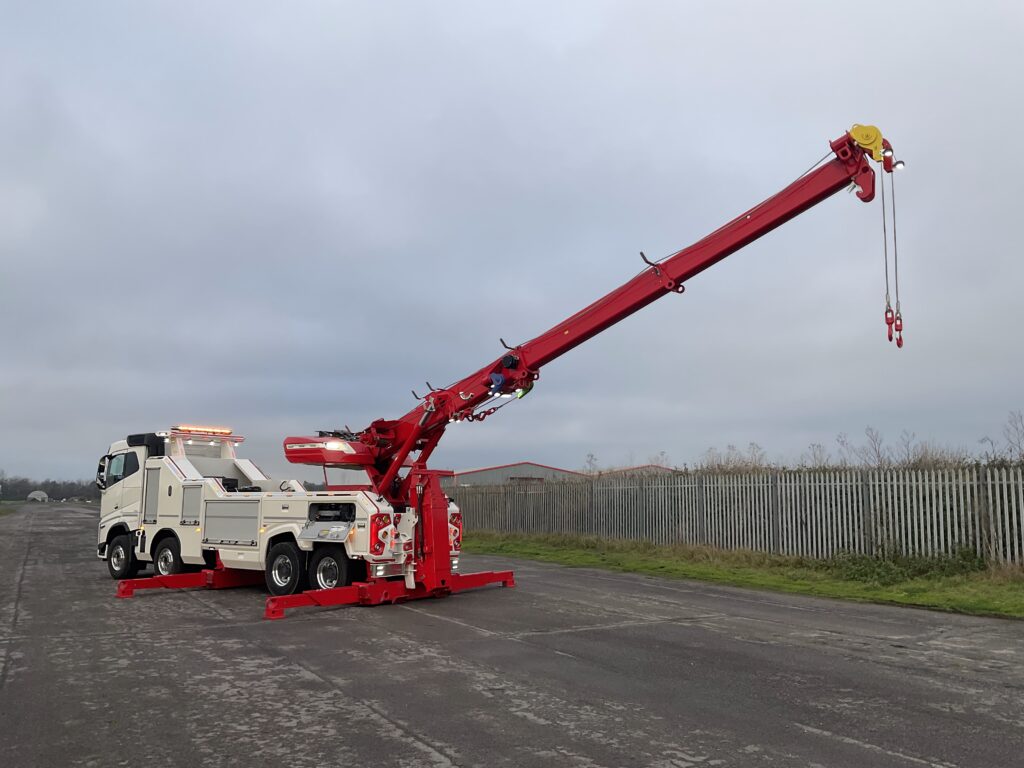

Three stage boom
“V” shape boom
Boom structural rating fully retracted 130,000 lbs / 60T
Boom structural rating fully extended: 25,000 lbs /11.5T
Reach past tailgate: 367”
Maximum boom working height: 530”
Maximum boom elevation: 73 degree
360 degree sheave head
D-rings on each boom section
Euro-axle lift shd-3 stage 4200mm reach lowline underlift
Dual 50,000 lbs two speed planetary winches
Wire rope: 7/8” x200’
Air tensioners
Air free spool
Dual 20,000 lbs single speed auxiliary planetary winches
Wire rope 5/8” x200’
Air tensioners
Air free spool
Fully proportional paddle style controls
8 button can bus keypad in the cab for lighting control
Fully proportional remote control w/2 batteries and charger
7” (178mm) colour touch screen
Vehicle display controller (vdc) mounted on control panel
Electronic anti-twist device
Electronic self-levelling
Scale system
Electronic door locks QTY
C-ER037 FULL CONTROL ON BOTH SIDES 1.
DBE MANUFACTURE FRONT LOCKER TO SUIT 1.
DBE MANUFACTURE BEACON FLYER TO SUIT 1.
DBE 72” LIGHT BAR TO FLYER 1.
DBE STI LIGHTS TO FLYER 2.
DBE WORK LIGHTS TO FLYER 6.
C-24V 24V WIRING 1.
C-C02 COMPOSITE WINCH COVERS 1.
C-A64 EXTRUDED ALUMINIUM PANEL IN DRIVER SIDE (L) FRONT LARGE
TOOL BOX (DOUBLE DOOR/ROLL UP) 1.
C-A64 EXTRUDED ALUMINIUM PANELS IN PASSENGER SIDE (RH) LARGE
TOOL BOX (DOUBLE DOOR) 1.
C-NC86 T-BAR 4”X4’ (102MM X 102MM) 1.
C-l043-E EURO-AXLE LIFT SHD-3 STAGE EXTRA REACH – T BAR 4 X 4
(REF=XSHDE3-4) 1.
C-Z511 DROP AXLE ADAPTORS (T-BAR 4X4)EURO 1.
C-Z804 CHAIN FORK (SET) 2.
DBE 02 3” HIGH FORK 2.
DBE 03 4” LOW FORK 2.
DBE 06 3” LOW FORK 2.
DBE 08 5” LOW FORK 2.
C-Z810 STEP UP FOR 8” SWIVEL RECEIVER 2.
C-R28 KETCHER HOOK 1.
DBE 21T MASTER LINK 2.
C-Z611 BUS ADAPTORS 1.
C-Z803 FIFTH WHEEL ATTACHMENT 1.
DBE SNATCH BLOCK HOLDER (6) 1.
DBE SHACKLE HOLDER 1.
DBE HALF SHAFT HOLDER 1.
C-L108 LUMABAR LED LIGHTING IN ALL TOOL BOXES 1.
C-L123 4 X KERB LIGHTS 1.
C-ER02 2 LED WORK LIGHTS ON THE CYLINDER ATTACHMENT 1.
C-ER02 2 LED WORK LIGHTS UNDER THE AUX WINCH SHEAVES 1.
C-L111 2 LED WORK LIGHTS ON REAR LOWER VALANCE 1.
C-L200 2 LED WORK LIGHT ON SHEAVE HEADS 1.
C-L106 WORK LIGHTS ON EACH SIDE OF AXLE LIFT 1.
C-REM02 YELLOW MAXI SCANRECCO W/LCD DISPLAY 1.
C-L06 WIRELESS LODAR REMOTE CONTROL LODAR 6 BUTTONS 1.
C-L20 LODAR LOCATOR WITH BUZZER 1.
C-C076 SPIKED GRIPS FOR OUTRIGGER FEET 1.
C-ER04-2 WINCH CAMERA WITH SCREEN 1.
C-ST01 SCANRECO LO-CATOR WITH LED AND BUZZER 2.
C-R02 AIR HOSE REEL TO REAR OF BODY 1.
C-OP01 FAST HYD CONNECTORS FOR UNDERLIFT 1.
C-S0741 STAINLESS ON WINCH COVERS 1.
C-S0991 STAINLESS UNDER MARKER LIGHTS 1.
NRC EQUIPMENT WRECKING BOX 1.
NRC SPREADER BARS 2.
NRC PULL OUT AIR REEL TO REAR 1.
DBE 44T TOW POLE 1.
DBE 8T X 6” SNATCH BLOCK X 16MM ROPE 2.
DBE 12T X 8” SNATCH BLOCK / McKISSICK LIGHTWEIGHT 2.
DBE 12,000T X 8MTR ORANGE FLAT STROP 2.
DBE 12,000T X 4MTR ORANGE FLAT STROP 2.
DBE 12T X 8MTR ROUND SLING 4.
DBE 12T X 4MTR ROUND SLING 4.
DBE 8T X 6MTR ROUND SLING 2.
DBE 8T X 4MTR ROUND SLING 2.
DBE 8.5T SHACKLES 4.
DBE 12T SHACKLES 6.
DBE 7MM X 2MTR GRAB HOOK EACH END 8.
DBE 10MM X 2MTR GRAB HOOK EACH END 2.
DBE 13MM X 4MTR GRAB HOOK EACH END 2.
DBE 16MM X 4MTR GRAB HOOK EACH END 2.
DBE RED / YELLOW SUZIES 2.
DBE SUZIE RACK 1.
DBE MISC AIR CONNECTORS 1.
DBE “C” TYPE PALM COUPLERS 2.
DBE ALLOY WHEEL STANDS (PAIR) 1.
DBE LED TRAILER BOARD 1.
DBE EXTENSION CABLE 1.
DBE “ON TOW” MAGNETIC SIGN 1.
DBE 24V JUMP SOCKETS TO BATTERY BOX / 5 MTR LEADS 1.
DBE 4 X FRONT WHITE MARKER / AMBER STROBES 1.
DBE 4 X REAR RED MARKER / AMBER STROBES 1.
DBE 12” PETROL STIHL CHAIN SAW 1.
DBE 12” PETROL STIHL SAW 1.
DBE WRECKER KIT, BRUSH, SHOVEL ETC 1.
DBE 6KG FIRE EXTINGUISHER 2.
DBE ROAD CONES 6.
DBE 3MTR EXTENDABLE ALLOY LADDER 1.
DBE LED SAFETY TORCH 2.
DBE CHEMICAL HAZ KIT 1.
DBE RUBBER WHEEL BLOCKS (PAIR) 1.
SUPPLIED AND FITTED TO CHASSIS £ 860,000.00 + VAT
FIRST REG & ROAD FUND LICENCE EXTRA
